Integrating periodicity - Solution

Use the View option to switch off the display of the derivative and switch on the display of the integral. Then tap the Function icon, y(t) and the Function Function pop-up menu appears

Graphs of Some Periodic Functions, with 0 offset, and their Integrals

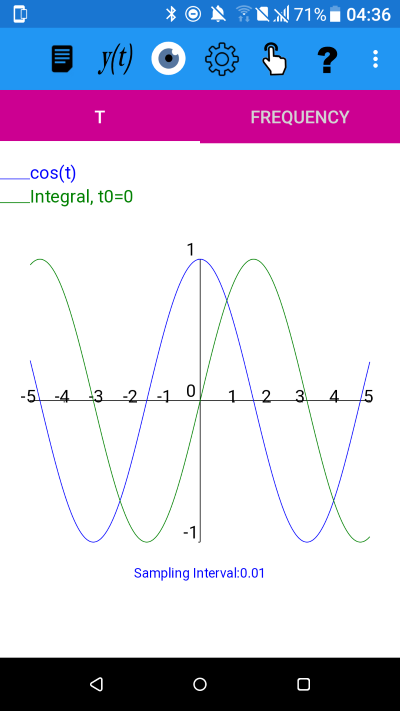

cos(t) and its integral

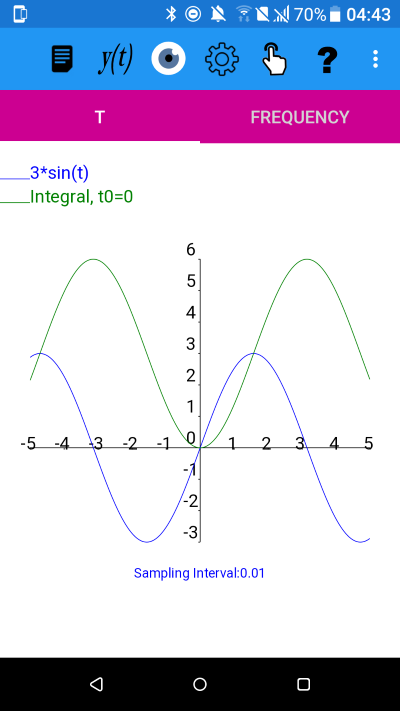

3sin(t) and its integral

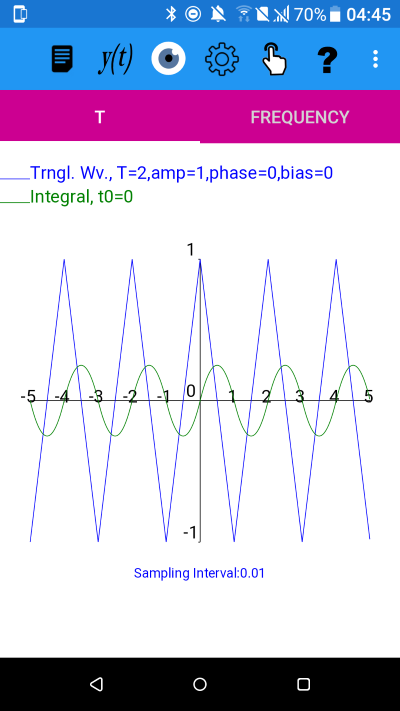

Triangular wave with 0 offset and its integral

Graph of a triangular wave with zero offset and its integral - plotXpose app, companion to Mathematics for Electrical Engineering and Computing by Mary Attenborough, published Newnes

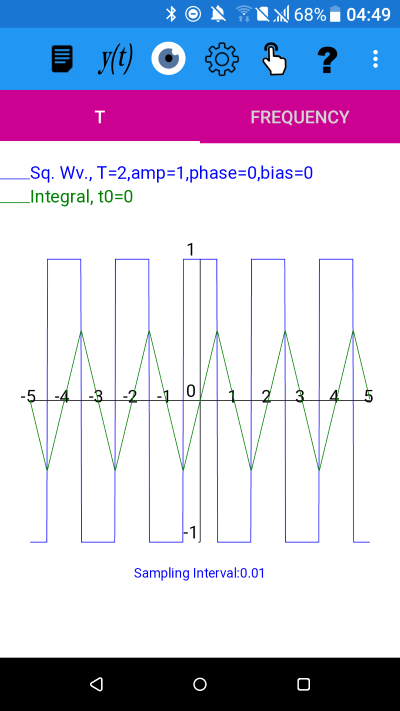

Square wave with 0 offset and its integral

Graph of a square wave with zero offset and its integral - plotXpose app, companion to Mathematics for Electrical Engineering and Computing by Mary Attenborough, published Newnes

All the integrals of periodic functions with zero offset above are periodic

Graphs of Some Periodic Functions, with non-zero offsets, and their Integrals

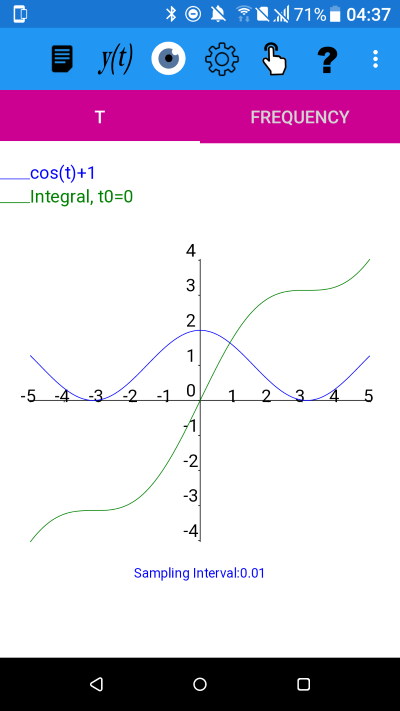

cos(t)+1 and its integral

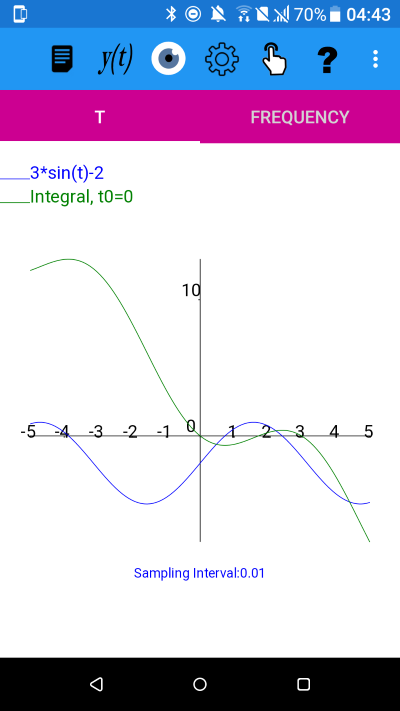

3sin(t)-2 and its integral

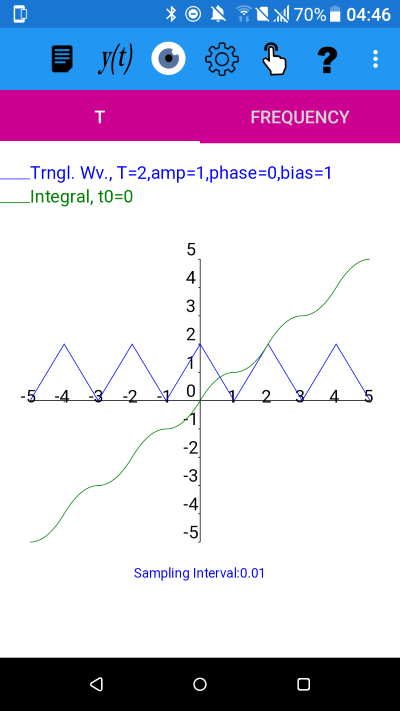

Triangular wave with offset 1 and its integral

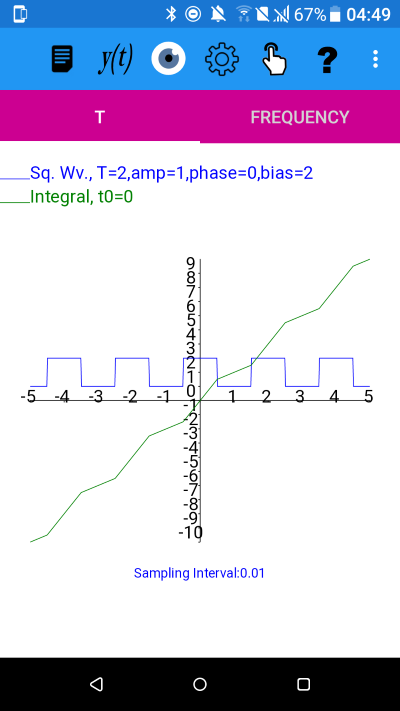

Square wave with offset 2 and its integral

None of the integrals of functions with non-zero offset are periodic

The offset has resulted in the integral function being sloped
