That's odd - Solution

Graphs of Odd Functions with their Derivatives

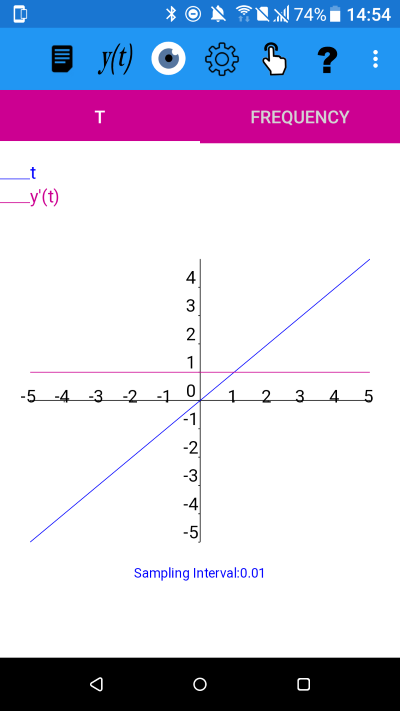

y= t

y=t and its derivative. t is an odd function and its derivative is even.

From the image it appears that the derivative is an even function because if the derivative graph is reflected in the y axis it results in a copy of itself.

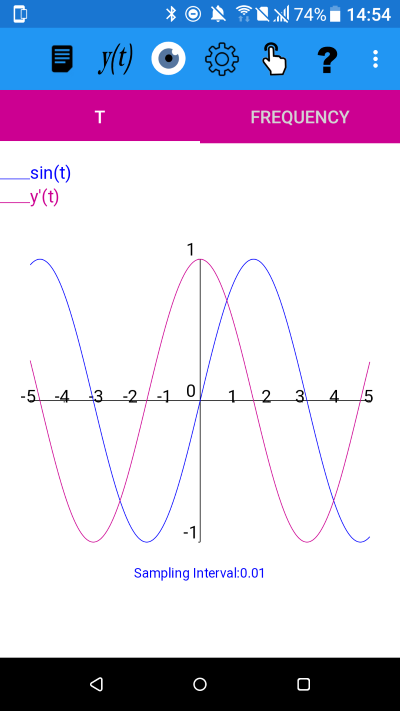

y=sin(t)

From the image it appears that the derivative is an even function.

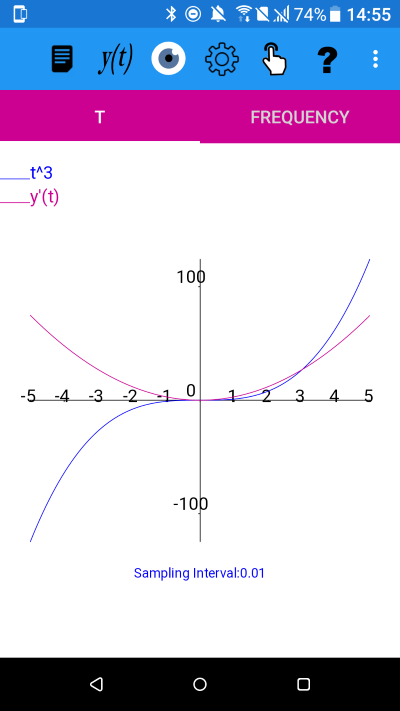

y=t^3

t^3 and its derivative. t cubed is an odd function and its derivative is even.

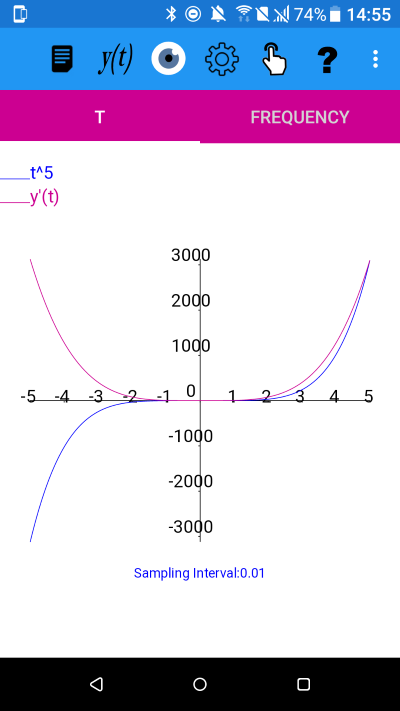

y=t^5

t^5 and its derivative. t^5 is an odd function and its derivative is even.

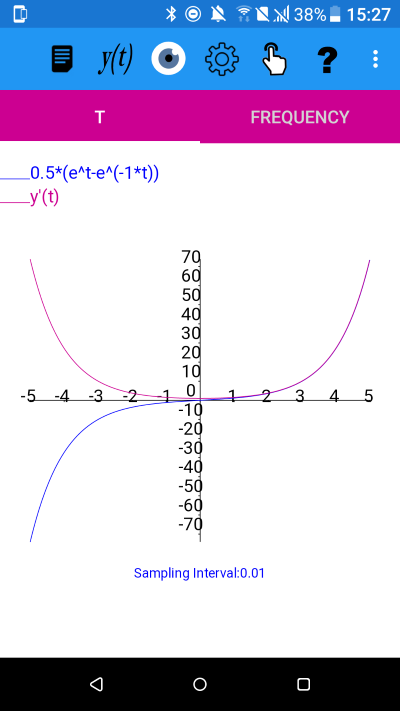

y=sinh(t) using sinh(t)=0.5(e^t-e^(-1t))

sinh(t), using sinh(t)=0.5*(e^t-e^(-1*t)), and its derivative. sinh(t) is an odd function and its derivative is even

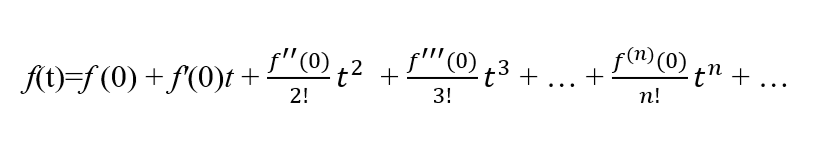

The Maclaurin series for a general function, f(t), defined around t=0 and with all its derivatives defined at t=0 is given by:

The Maclaurin series for a general function, defined around t=0 and with all its derivatives defined at t=0

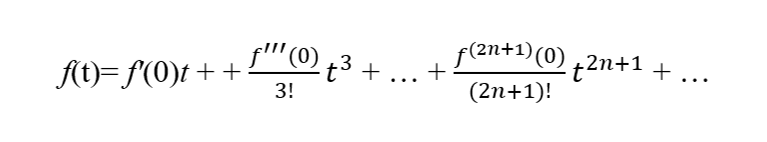

If a function is odd then it will only have odd powers of t in its Maclaurin series, i.e. f(0) and f''(0) and f⁽ⁿ⁾(0) for n even, must all be 0.

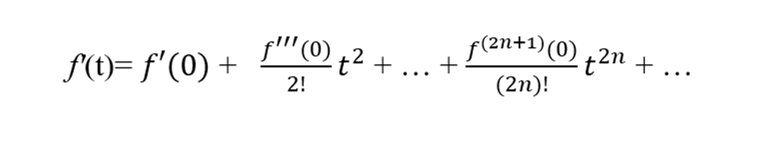

Differentiating above we get:

The power series for the derivative of an odd function. We see that the power series for the derivative consists of only a constant term and even powers of t and therefore is even

We see that the power series for the derivative consists of only a constant term and even powers of t and therefore is even.
